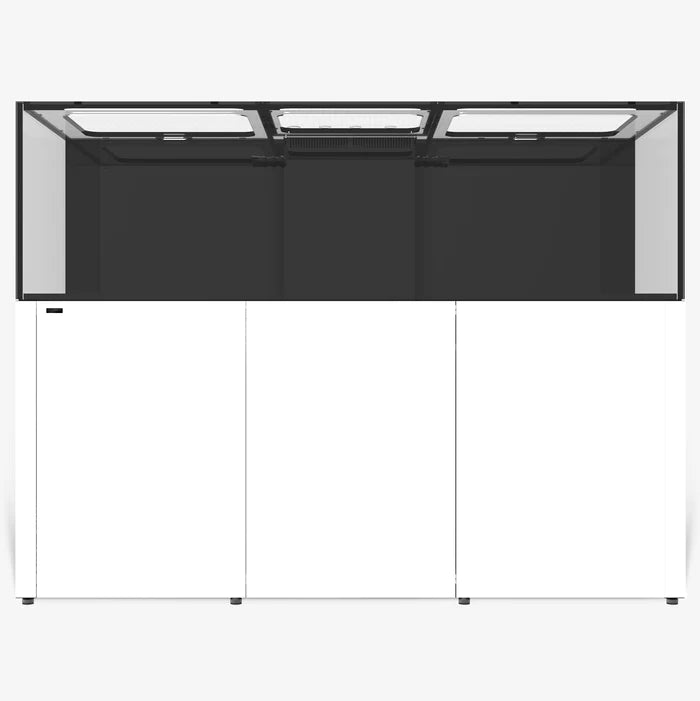

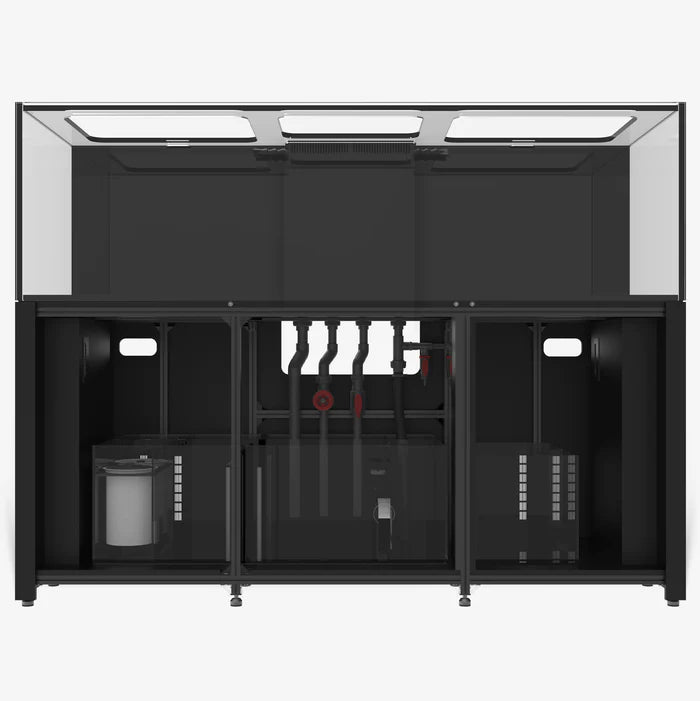

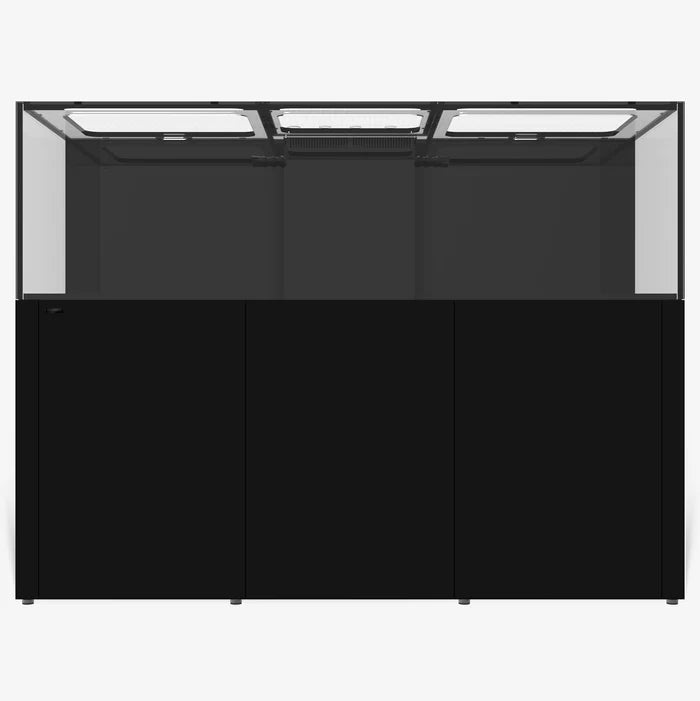

REEF LX 330.7 Aquarium Setup
REEF LX 330.7 Aquarium Setup - Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
REEF LX 330.7 Aquarium Setup
Drop-Ship Ordering Starting October 2024 - Allow 1-6 weeks
30" Depth
The Waterbox REEF LX delivers a staggering 30 inches (750mm) of depth for the ultimate in aquascaping possibilities.
Full Glass Overflow
Overflow boxes are constructed entirely of glass with water-etched weir teeth.
Dual Overflow Return Nozzles
Glass Overflow Cover
Each Waterbox has an overflow cover with unique branding.
Ultra Low Iron Glass
Our aquariums are all manufactured using Low Iron Ultra Clear glass that is diamond beveled providing 91% transmittance.
High Strength Silicone
Manufactured using german made Wacker silicone will provide your aquarium with the longevity it needs.
Standard 90 Degree Joints
Manufactured using the standard aquarium manufacturing joints for maximum durability and strength.
+Plus XR Editions Includes (3) Radion XR30 Blues with RMS Arm(s)
| Display | Dimensions (LxWxH) | 86.6" × 29.5" × 25.6" |
| Glass Thickness | 19mm (3/4") | |
| Euro-bracing Thickness | 15mm (3/5″) | |
| Aquarium Volume | 971 L/256.6 gals |
|
| Aquarium Weight | 397.0 kg / 875.2 lb |
|
| Glass Material | Ultra-clear Low Iron glass (front, sides and euro-bracing) |
|
| Transmittance | 91% |
|
| Sump | Dimensions (LxWxH) | 47.2" × 22.8" × 15.7" |
| Sump Volume | 262 L/69.2 gals |
|
| Sump Weight | 63.0 kg / 138.9 lb |
|
| Glass Thickness | 8mm (5/16") | |
| Refugium Chamber (Max Dimensions) |
14" × 19.2" |
|
|
Refugium Chamber |
9.8" × 19.2" |
|
| Skimmer Chamber (Int. DIM, w/o Refugium) |
29.7" × 19.2" |
|
| Skimmer Chamber (Int. DIM, with Min Refugium) |
19.7" × 19.2" |
|
| Skimmer Chamber (Int. DIM, with Max Refugium) |
15.5" × 19.2" |
|
| Pump Chamber (Int. Dimensions) |
7.1" × 19.2" | |
| ATO | ATO Dimensions (LxWxH) | 13.8" × 22.8" × 14.6" |
| ATO Volume | 70 L/18.5 gals |
|
| ATO Weight | 15.0 kg / 33.1 lb |
|
| Glass Thickness | 6mm (1/4") | |
| Plumbing | Main Drain | 2 x DN25 (32mm/1-1/4") |
| Emergency Overflow | DN32 (40mm/1-1/2") |
|
| Pump Return | DN25 (32mm/1-1/4") |
|
| Nozzle(s) | 2 x DN20 |
|
| FELT Filter Socks | 2 x 180mm/7" |
|
| Cabinet | Cabinet Model | ALU 8730 |
| Cabinet Dimensions | 86.6" × 29.5" × 39.4" |
|
| Sump Compartment (Int. Dimensions) |
49.7" × 25.7" × 32.8" |
|
| ATO Compartment (Int. Dimensions) |
19.9" × 26.9" × 32.8" |
|
| Electrical Compartment (Int. Dimensions) |
18.8" × 6.1" × 31.4" |
|
| Cabinet Framework | Anodized 6063 Aluminum Alloy (3030 CE) |
|
| Cabinet Panels | 18mm Solid Plywood |
|
| Panel Paint | Water-resistant PU Coated (front & sides) |
|
| Cabinet Color | W-White, B-Black |
|
| Cabinet Weight | 274 kg / 606.3 lb |
|
| System | Height with Cabinet | 1650mm/65" |
| Total Volume | 1303 L/344.2 gals |
